Double Shafts Waste Tire Rubber Shredder Machine
Product Categories
Double Shafts Waste Tire Rubber Shredder Machine
Daxu’s two – shaft tire shredding machine are specially designed for shredding whole tyres into rough shreds for disposal or further processing into Tyre Derived Aggregate (TDA), Tyre Derived Fuel (TDF), or as feedstock for crumb rubber applications.
The thickness of all the rubber shredder machine blades ranges from 50 mm to 150 mm, depending on the type of tyres, output, and final product. Rubber Shredding Machine can process OTR tyres, big truck tyres, and passenger car tyres at a rate of 1 ton to 35 tons per hour.
Share:
Description
Tire Recycling Shredding Equipment Advantage
High efficiency: two axes work simultaneously, with strong processing capacity and fast shredding speed.
Uniform shredding: Crumb Rubber Machine’blades are staggered to ensure uniform tearing of materials and avoid single-point overload.
Reduced energy consumption: the cooperation of two axes disperses the force, reduces the wear of individual components, and reduces energy consumption.

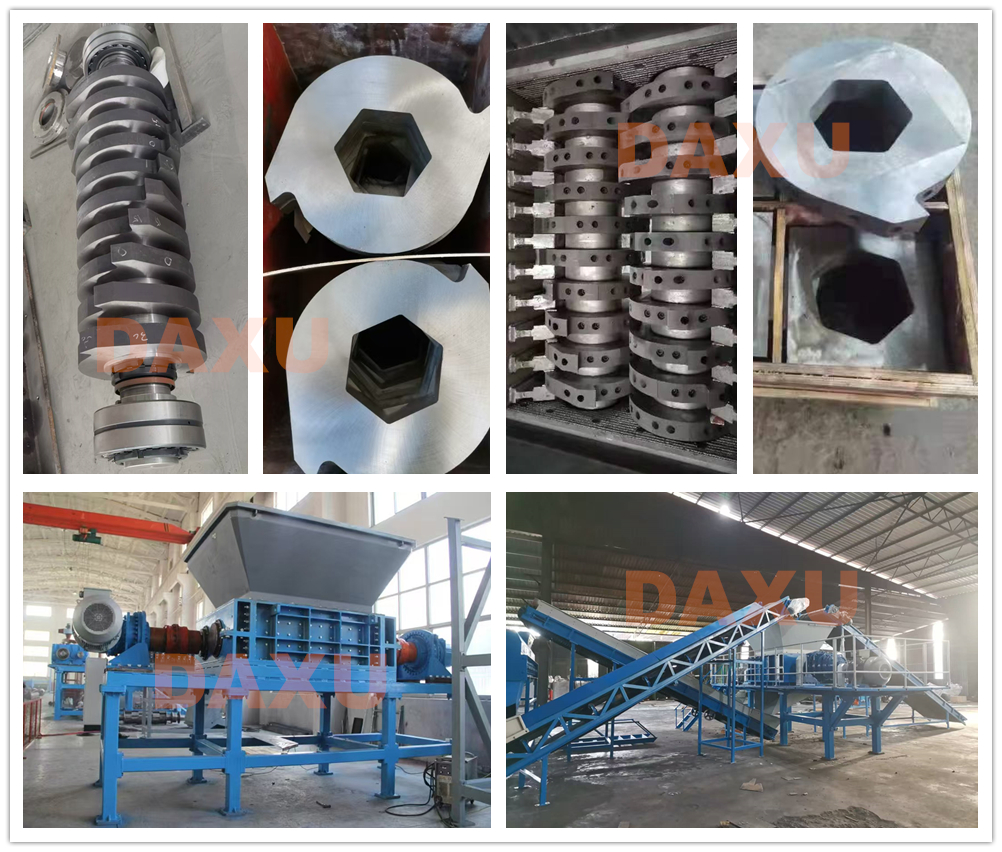

Durable knives: high-quality alloy knives are used, which are wear-resistant and corrosion-resistant, and can be welded and repaired after damage.
Anti-winding design: effectively prevents materials from winding around the blades and reduces the frequency of downtime for repairs.
Good sealing: the quadruple sealing system ensures safe and stable sealing of the machine in complex environments.
Automatic reversal protection: when the motor is overloaded or the material is blocked, the knife shaft automatically reverses to protect the machine.
Tire Shredding Machine Technical Data
| Model | Input size | Output size | Cappacity | Motor | Blades quantity | Dimensions | Weight |
| TS-800 | 800mm | 50*50mm | 1-2T/h | 2*22kw | 16pcs | 4*2.6*3.2m | 8T |
| TS-1200 | 1200mm | 60*60mm | 3-5T/h | 2*45/55kw | 20pcs | 4.8*2.8*3.5m | 14T |
| TS-1600 | 1600mm | 50-150mm | 6-8T/h | 2*75kw | 16-30pcs | 5*2*3.4m | 18T |
| TS-1800 | 1800mm | 50-150mm | 7-10T/h | 2*90/110kw | 20-24pcs | 5.6*2*3.4m | 23T |
Features of Waste Tire Shredding Machine
Daxu waste tire shredder machine is with advantages of compact structure, advanced technology, low energy consumption, high efficiency, and the maintenance of tire shredder factory is particularly convenient.
All parts of Daxy waste tire granulator machine are with carbide surfacing technology, high hardness, high wear resistance, repeated repair, longer service life, etc.
Rotary screen of large and small waste tire shredder machine is lattice structure made by steel mesh, with large blanking area, enabling the screening of qualified rubber. Very large tires can also achieve the same shredding effect!

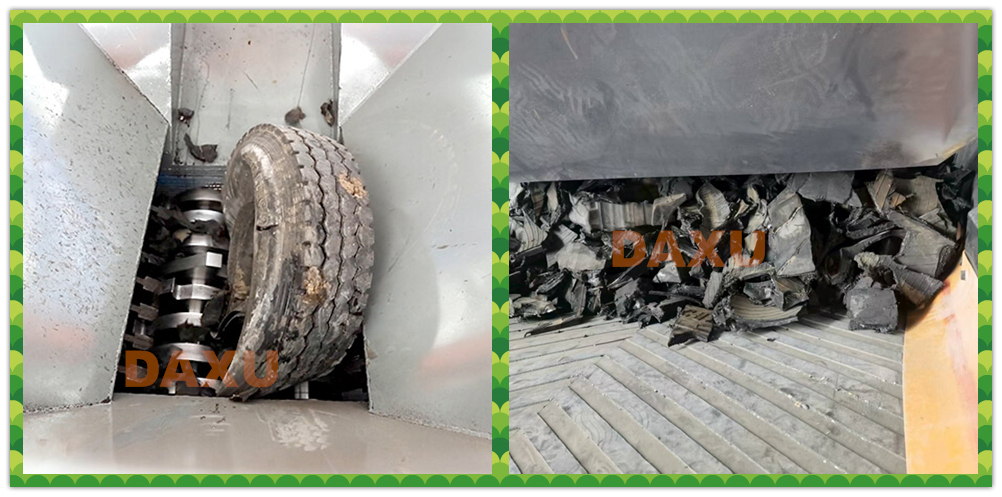

Mechanical description: the tire and rubber ring with diameter of 900mm can be directly breaken into plastic block with size about 50-300mm.
