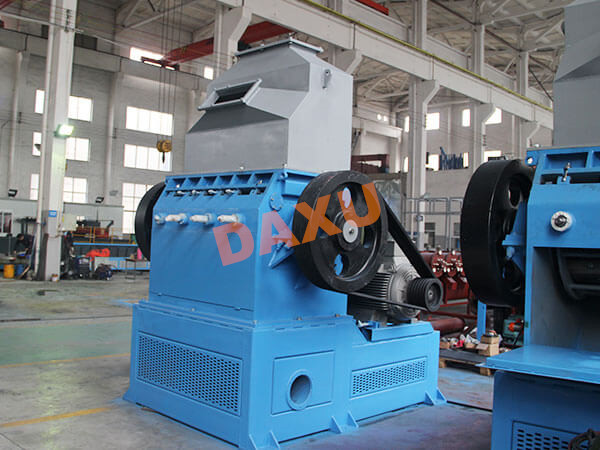

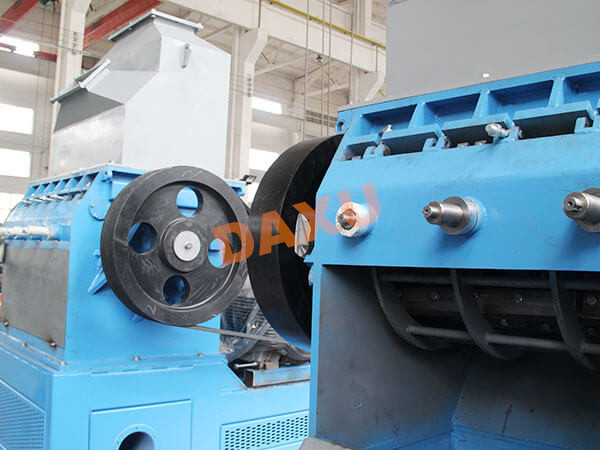

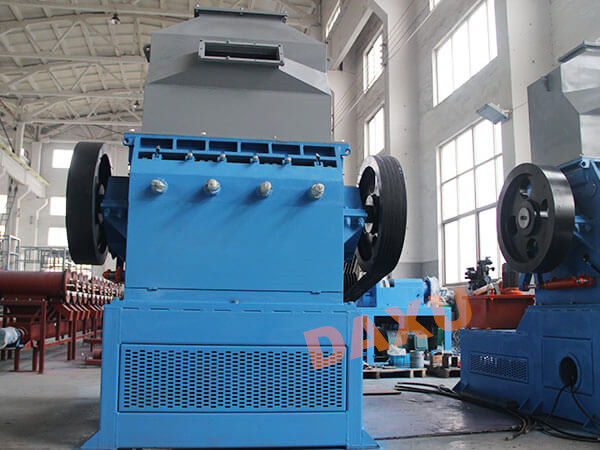

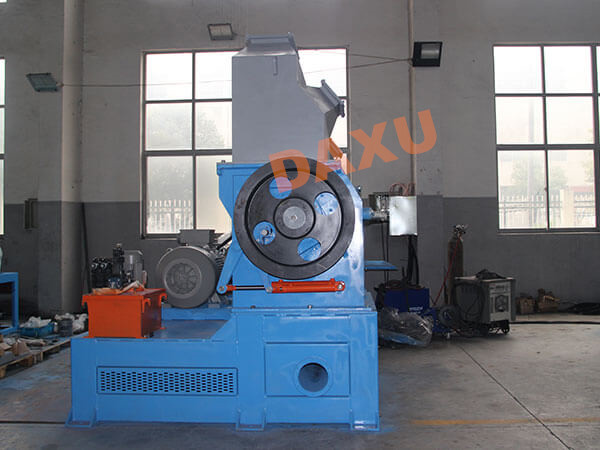

Granulator

Introduction

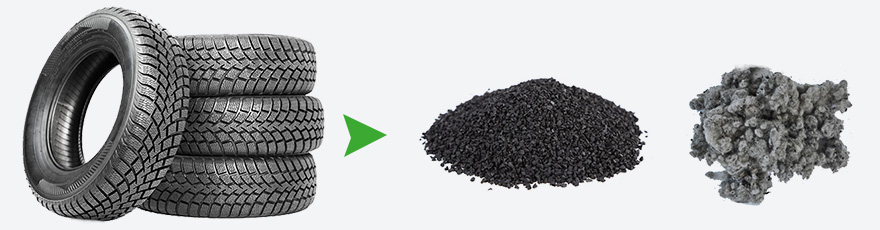

For rubber processing, Granulators are typically the third station in the tire recycling lineup. At this stage, wire-free material is processed from the secondary shredder into the granulator, which reduces further into uniform granules with all steel and fiber removed. These shredders are high-speed knife mills that reduce feedstock to a particle size.

This machine is where the fiber removal and extraction begins. Passenger tires typically contain 10-15% nylon or polyester fabric by weight. Granulators output crumb rubber, which is typically 3/8” – 400 microns (0.400 mm) in size.  While there are a multitude of similarly designed granulators in the market today, look for one that is engineered specifically for the type of material you are processing.

Parameter

Granulator	LK-G90	LK-G45	LK-G37
Motor   specifications	Electric-Siemens	Electric-Siemens	Electric-Siemens
Power	90kw	45kw	37kw
Voltage	As   per request	As   per request	As   per request
Cutting   chamber L*W	742*1200	580*1000	580*800
Equipment   Dimensions	2150*2250*2950	1765*1900*2435	1765*1660*2435
Equipment   weight	5600kg	3300kg	2950kg
Hopper   opening L*W*H	895*1434*1160	602*994*916	602*794*916
Capacity	800-1500kg/h	500-800kg/h	300-500kg/h
Final   product	1-6mm	1-6mm	1-6mm

Service

Granulator Processing:

●Rubber Mulch is reduced to 3/8″-400 microns (0.400mm) crumb

●Granulators reduce materials to particle size shreds

●Granulators typically process up to 3 tons/hour of input

Granulator Markets:

●Scrap Tire Rubber Market

●Scrap Plastics Market

●Useful for other Waste Material

●Markets

Granulator Benefits:

●Quickly Reduces Rubber Mulch into small rubber granules

●Removes 99.9% of tire fiber

●leaving contaminant free rubber granules

●Preferred machines for specific material output sizes
