Miller

Introduction

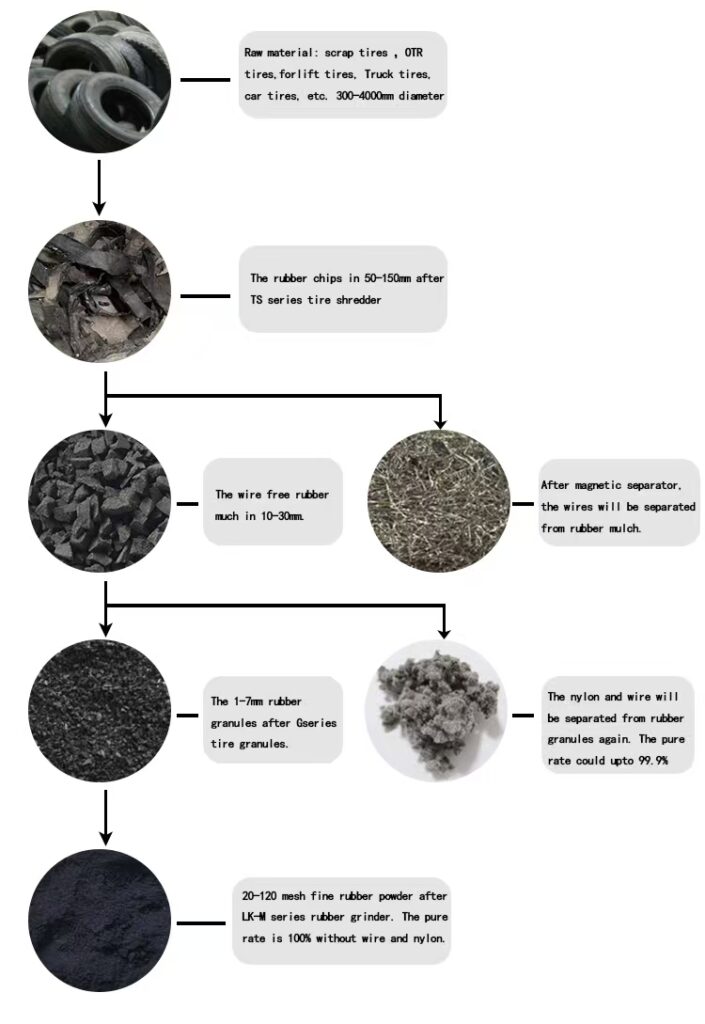

The final station of tire recycling involves a fine grinding or milling which takes material from the mulch or crumb rubber stage and reduces it down to 2 – 0.177 mm (2000 – 177 microns) rubber powder depending on the requirement.  This station is where a fine grinding cracker mill processes and recirculates crumb rubber until clean rubber powder is achieved.

Parameter

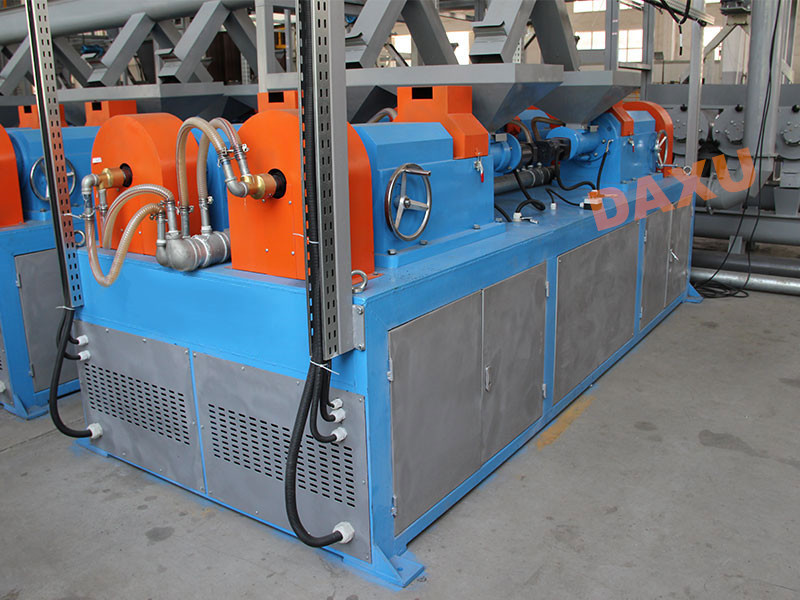

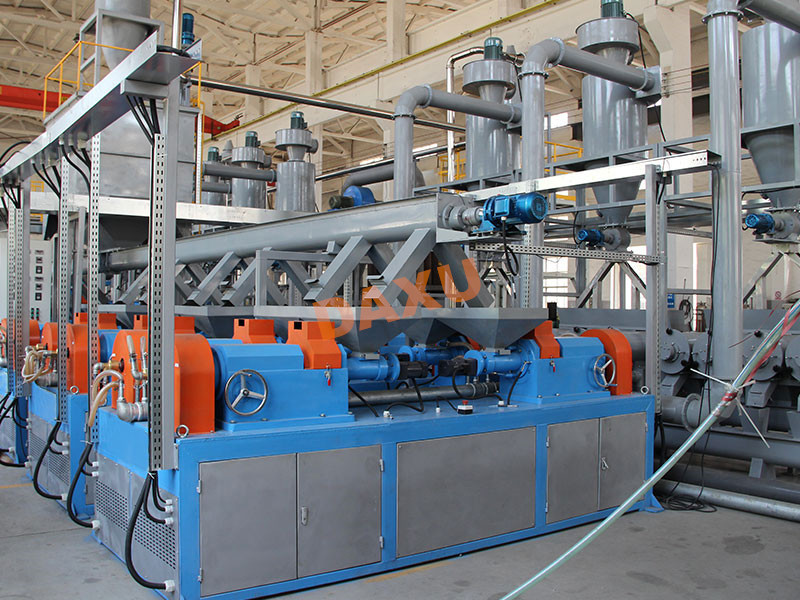

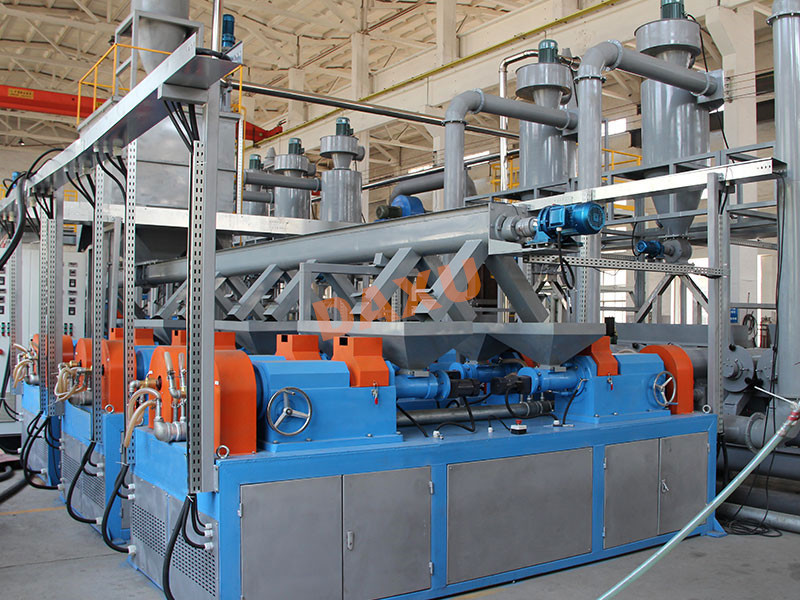

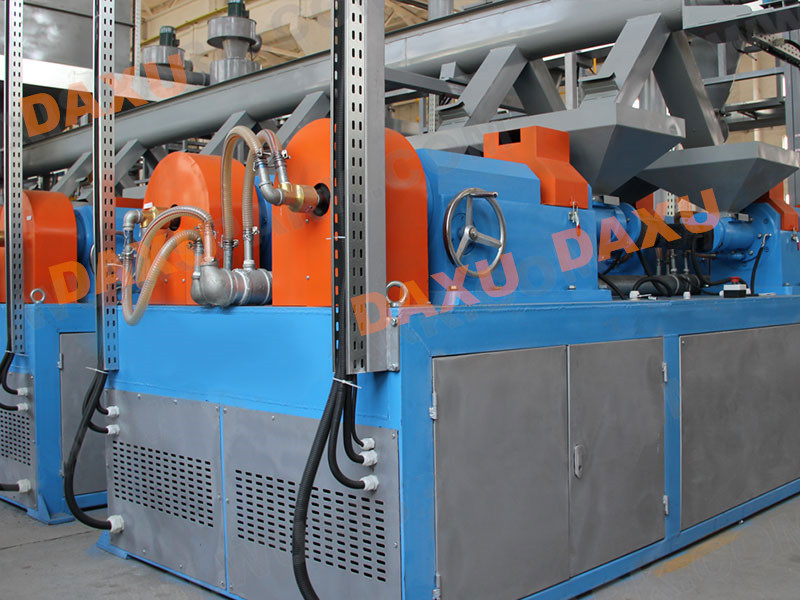

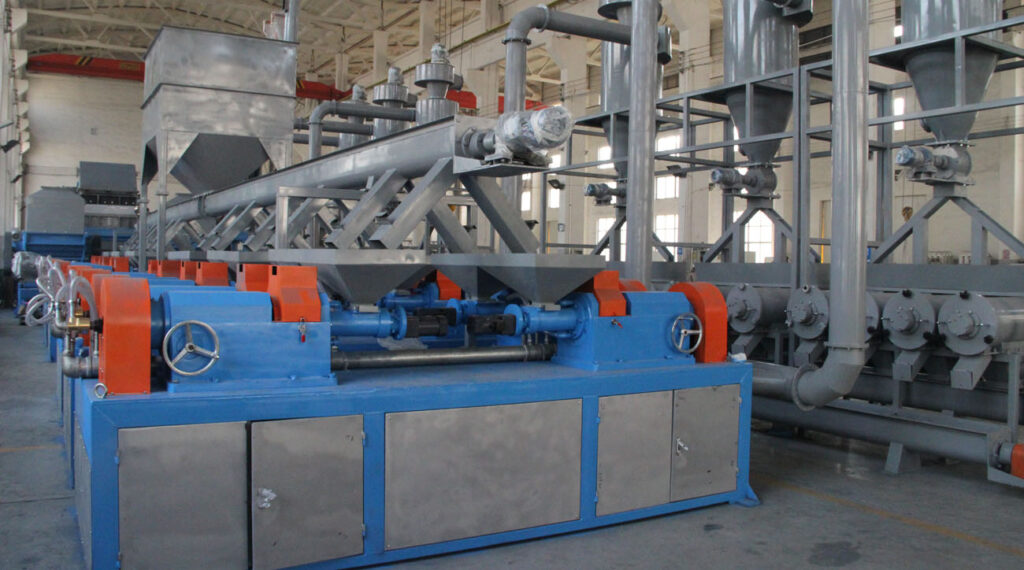

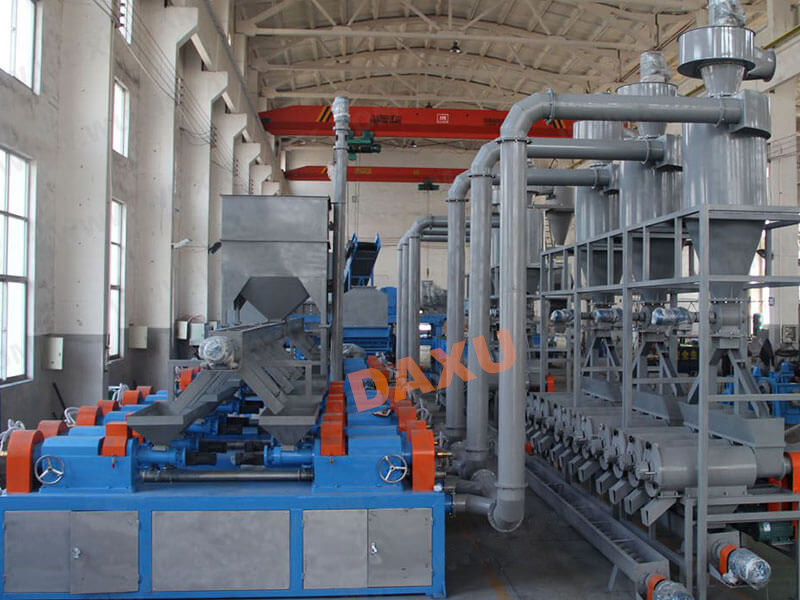

Miller	LK-M280
Motor Specifications	Electric-Siemens
Power	30Kw*4
Voltage	as per request
Equipment Dimensions L*W*H	2404*1100*1093
Equipment Weight	5000Kg
Capacity	400-600kg/hr
Final Product	30-120 mesh

Service

Fine Grinding Processing:

●Crumb Rubber reduced to 2-0.177 mm (2000-177 microns)

●Rubber

●bPower

●Cracker Mills reduce materials to particle size shreds

●Fine Grind Mills typically process up to 1-3 tons/hour of input

Fine Grinding Markedts:

●Scrap Tire Rubber Market

●New Rubber Mixtures

●Geo Membranes

●Thermo Plastics

●New Tires

●Scrap Plastics Market

●Other Waste Markets

Fine Grinding Bennfits:

●Quickly reduces crumb rubber into fine rubber powder material

●More efficient process than typical granulation

●Produce commercial quantitles of fine material
