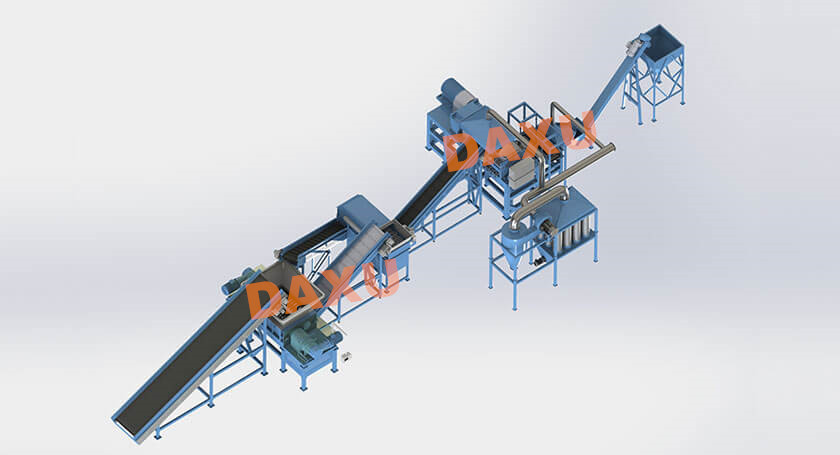

Rubber Mulch System

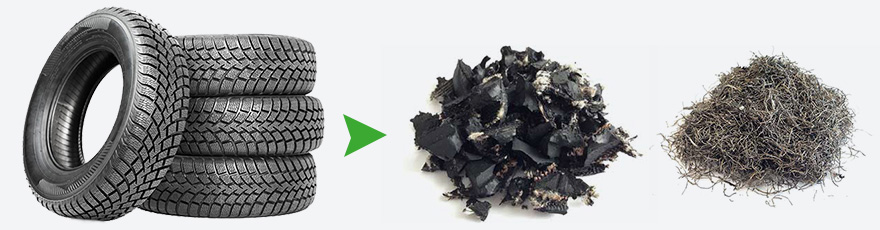

Wire-free Chips or Rubber Mulch are shreds that exit through the second station or secondary shredder of a tire recycling line. At this stage, rough shreds from the primary shredder are processed into a uniform chip with steel removed through a wire cleaning/magnet removal process. These chips are typically 99.9% wire-free. Wire-free chips are typically found in 1 ¼” – 3/8” inch in size.

Wire-free chips have numerous uses from landscaping and playgrounds to engineering applications. An added value of wire-free chips is the ability to remove the steel and sell to buyers. Wire-free mulch is a low-maintenance material for landscapers and homeowners.

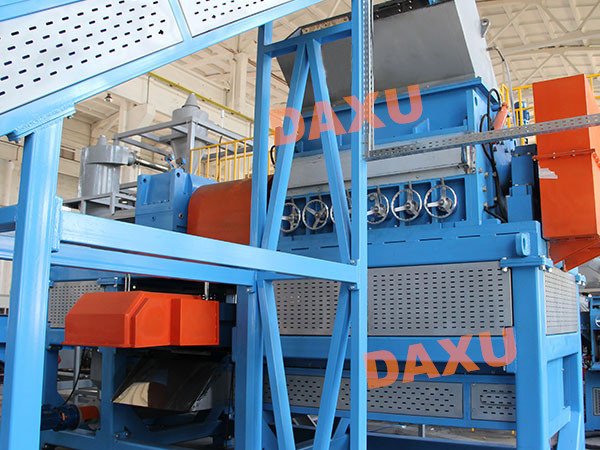

Rasper

The Grater can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.

Rasper Processing:

●TDS rough shreds Reduced to 3/4”-1” minus chips/rubber mulch

●Graters are low RPM, high torque, powerful shredders with re-circulating features

●Can process up to 12 tons/hour of input

Rasper Markets:

●Scrap Tire Rubber Market

●Useful for other Waste Markets

Rasper Benefits:

●Quickly Reduces TDS rough shred Stockpiles

●You can get wire free rubber mulch easily.

Parameter

Rasper	DX-R315	DX-R132	DX-R90	DX-R75	DX-R55	DX-R45
Motor	Siemens	Siemens	Siemens	Siemens	Siemens	Siemens
Power	315kw	132kw	90kw	75w	55w	45kw
Voltage	As   per request	As   per request	As   per request	As   per request	As   per request	As   per request
Cutting   chamber	697*1562	742*1200	550*1000	550*800	450*800	45-*600
Equipment   dimensions mm	6217*2168*3561	2010*2562*4110	2095*2180*4105	1995*1980*4105	1720*1730*2316	1400*1200*2260
Hopper   opening	1726*877*906	1412*902*1410	1182*700*1255	982*700*1255	922*580*916	722*580*916
Equipment   weight	24000kg	6100kg	4200kg	3500kg	1850kg	1700kg
Capacity	3-6T/H	1.5-3T/H	1-1.5T/H	700KG-1T/H	500-700KG/H	300-500KG/H
Final   product	10-30mm	10-30mm	10-30mm	10-30mm	10-30mm	10-30mm

Service

Grater Processing:

●TDS rough shreds Reduced to 3/4″-1″minus chips/rubber mulch

●Graters are low RPM,high torque,powerful shredders with recirculating features

●Can process up to 12 tons/hour of input

Grater Markets:

●Scrap Tire Rubber Market

●Useful for other Waster Markets

Grater Benefits:

●Quickly Reducess TDS rough shred Stockpiles
